H 型磁心
H Magnetic Cores
品质简述：
·宽温环形磁心（-55℃～+125℃），专为满足宽温器件对磁心元件温度特性（宽温稳定性）的要求而设计。
·温度范围宽；最新新产品；高温度稳定性。

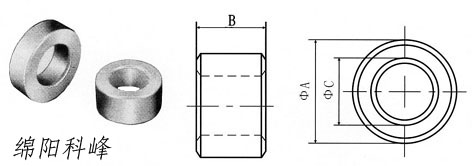

H型圆环磁心外形尺寸标注图表：
| 型号 |
尺寸 |
备注 |
| HφA×B×φC |
φA |
B |
φC |
| H2.5×1×0.7 |
2.5 +0.2
-0.2 |
1.0±0.2 |
0.7±0.2 |
|
| H4×1.5×2 |
4.0 +0.2
-0.2 |
1.5±0.2 |
2.0±0.15 |
|
| H6×2×3 |
6.0 +0.2
-0.2 |
2.0±0.2 |
3.0±0.2 |
|
| H8×4×4 |
8.0 +0.3
-0.3 |
4.0±0.2 |
4.0±0.2 |
|
| H10×4×5.5 |
10.0 +0.3
-0.2 |
4.0±0.2 |
5.5±0.3 |
|
| H10×4×6 |
10.0 +0.3
-0.2 |
4.0±0.2 |
6.0±0.3 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
| H32×8×20 |
32.0 +1.0
-1.0 |
8.0±0.4 |
20.0±0.7 |
|
各种型号的产品均可按用户的要求和样品选用不同的材料、尺寸进行匹配制作。 |
