DK 型磁心
DK Magnetic Cores
品质简述：
·为适应通讯技术，特别是双向传输技术和卫星通讯技术的发展，射频宽带铁氧体材料在宽频带范围内（5～1000MHZ、5～2500MHZ）完成阻抗变换、阻抗匹配和功率传输等功能；可作各种电感器的调节磁心及高频扼流圈和固定电感器磁心。
·抗EMI铁氧体材料在抗EMI材料中不失为高效廉价的材料，尤其在电子设备向高频化方向发展中，它的作用更加突出。抗EMI铁氧体材料制成的磁心套在电源线、信号线上以降低电磁噪声、尖峰脉冲、浪涌和静电放电的干扰，使电子设备符合电磁兼容（EMC）和静电放电（ESD）相应的技术要求。
·频带范围宽、低插损、高隔离、高反射损耗。

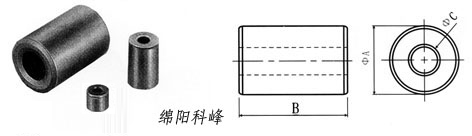

DK型单孔管形磁心外形尺寸标注图表：
|
型号 |
尺寸（mm） |
备注 |
|
DKφA×B×φC |
φA |
B |
φC |
|
DK2.5×1×0.8 |
2.5±0.15 |
1.0±0.15 |
0.8±0.1 |
|
|
DK2.5×1.8×0.8 |
2.5±0.15 |
1.8±0.15 |
0.8±0.1 |
|
|
DK2.5×2.2×0.8 |
2.5±0.15 |
2.2±0.15 |
0.8±0.1 |
|
|
DK2.5×4×0.8 |
2.5±0.15 |
4.0±0.2 |
0.8±0.1 |
|
|
DK2.5×5×0.8 |
2.5±0.15 |
5.0±0.3 |
0.8±0.1 |
|
|
DK2.5×2×1 |
2.5±0.15 |
2.0±0.15 |
1.0±0.1 |
|
|
DK2.5×4×1 |
2.5±0.15 |
4.0±0.2 |
1.0±0.1 |
|
|
DK2.5×5×1 |
2.5±0.15 |
5.0±0.3 |
1.0±0.1 |
|
|
DK2.5×1×1.3 |
2.5±0.15 |
1.0±0.15 |
1.3±0.1 |
|
|
DK2.5×1.3×1.3 |
2.5±0.15 |
1.3±0.15 |
1.3±0.1 |
|
|
DK2.5×1.6×1.3 |
2.5±0.15 |
1.6±0.15 |
1.3±0.1 |
|
|
DK2.5×2×1.3 |
2.5±0.15 |
2.0±0.15 |
1.3±0.1 |
|
|
DK2.5×2.5×1.3 |
2.5±0.15 |
2.5±0.2 |
1.3±0.1 |
|
|
DK2.5×3×1.3 |
2.5±0.15 |
3.0±0.2 |
1.3±0.1 |
|
|
DK2.5×3.4×1.3 |
2.5±0.15 |
3.4±0.2 |
1.3±0.1 |
|
|
DK2.5×4×1.3 |
2.5±0.15 |
4.0±0.2 |
1.3±0.1 |
|
|
DK3×3×1 |
3.0±0.15 |
3.0±0.2 |
1.0±0.1 |
|
|
DK3×4×1 |
3.0±0.15 |
4.0±0.2 |
1.0±0.1 |
|
|
DK3×5×1 |
3.0±0.15 |
5.0±0.3 |
1.0±0.1 |
|
|
DK3×1.2×1.2 |
3.0±0.15 |
1.2±0.15 |
1.2±0.1 |
|
|
DK3×3×1.2 |
3.0±0.15 |
3.0±0.2 |
1.2±0.1 |
|
|
DK3×4×1.2 |
3.0±0.15 |
4.0±0.2 |
1.2±0.1 |
|
|
DK3×5×1.2 |
3.0±0.15 |
5.0±0.3 |
1.2±0.1 |
|
|
DK3×1.5×1.5 |
3.0±0.15 |
1.5±0.15 |
1.5±0.1 |
|
|
DK3×2×1.5 |
3.0±0.15 |
2.0±0.15 |
1.5±0.1 |
|
|
DK3×3×1.5 |
3.0±0.15 |
3.0±0.2 |
1.5±0.1 |
|
|
DK3×4×1.5 |
3.0±0.15 |
4.0±0.2 |
1.5±0.1 |
|
|
DK3×5×1.5 |
3.0±0.15 |
5.0±0.3 |
1.5±0.1 |
|
|
DK3.5×2.5×0.8 |
3.5±0.15 |
2.5±0.2 |
0.8±0.1 |
|
|
DK3.5×3×0.8 |
3.5±0.15 |
3.0±0.2 |
0.8±0.1 |
|
|
DK3.5×4×0.8 |
3.5±0.15 |
4.0±0.2 |
0.8±0.1 |
|
|
DK3.5×4.5×0.8 |
3.5±0.15 |
4.5±0.2 |
0.8±0.1 |
|
|
DK3.5×5×0.8 |
3.5±0.15 |
5.0±0.3 |
0.8±0.1 |
|
|
DK3.5×6×0.8 |
3.5±0.15 |
6.0±0.3 |
0.8±0.1 |
|
|
DK3.5×8×0.8 |
3.5±0.15 |
8.0±0.3 |
0.8±0.1 |
|
|
DK3.5×3×1 |
3.5±0.15 |
3.0±0.2 |
1.0±0.1 |
|
|
DK3.5×3.5×1 |
3.5±0.15 |
3.5±0.2 |
1.0±0.1 |
|
|
DK3.5×4×1 |
3.5±0.15 |
4.0±0.2 |
1.0±0.1 |
|
|
DK3.5×5×1 |
3.5±0.15 |
5.0±0.3 |
1.0±0.1 |
|
|
DK3.5×6×1 |
3.5±0.15 |
6.0±0.3 |
1.0±0.1 |
|
|
DK3.5×7×1 |
3.5±0.15 |
7.0±0.3 |
1.0±0.1 |
|
|
DK3.5×9×1 |
3.5±0.15 |
9.0±0.3 |
1.0±0.1 |
|
|
DK3.5×2.5×1.2 |
3.5±0.15 |
2.5±0.2 |
1.2±0.1 |
|
|
DK3.5×3×1.2 |
3.5±0.15 |
3.0±0.2 |
1.2±0.1 |
|
|
DK3.5×4×1.2 |
3.5±0.15 |
4.0±0.2 |
1.2±0.1 |
|
|
DK3.5×4.5×1.2 |
3.5±0.15 |
4.5±0.2 |
1.2±0.1 |
|
|
DK3.5×5×1.2 |
3.5±0.15 |
5.0±0.3 |
1.2±0.1 |
|
|
DK3.5×6×1.2 |
3.5±0.15 |
6.0±0.3 |
1.2±0.1 |
|
|
DK3.5×3×1.3 |
3.5±0.15 |
3.0±0.2 |
1.3±0.1 |
|
|
DK3.5×4×1.3 |
3.5±0.15 |
4.0±0.2 |
1.3±0.1 |
|
|
DK3.5×5×1.3 |
3.5±0.15 |
5.0±0.3 |
1.3±0.1 |
|
|
DK3.5×8×1.3 |
3.5±0.15 |
8.0±0.3 |
1.3±0.1 |
|
|
DK3.5×9×1.3 |
3.5±0.15 |
9.0±0.3 |
1.3±0.1 |
|
|
DK3.5×10×1.3 |
3.5±0.15 |
10.0±0.4 |
1.3±0.1 |
|
|
DK3.5×3×1.5 |
3.5±0.15 |
3.0±0.2 |
1.5±0.1 |
|
|
DK3.5×3.5×1.5 |
3.5±0.15 |
3.5±0.2 |
1.5±0.1 |
|
|
DK3.5×4×1.5 |
3.5±0.15 |
4.0±0.2 |
1.5±0.1 |
|
|
DK3.5×5×1.5 |
3.5±0.15 |
5.0±0.3 |
1.5±0.1 |
|
|
DK3.5×6×1.5 |
3.5±0.15 |
6.0±0.3 |
1.5±0.1 |
|
|
DK3.5×10×1.5 |
3.5±0.15 |
10.0±0.4 |
1.5±0.1 |
|
|
DK4×1.5×1.5 |
4.0±0.15 |
1.5±0.15 |
1.5±0.1 |
|
|
DK4×2×1.5 |
4.0±0.15 |
2.0±0.15 |
1.5±0.1 |
|
|
DK4×3×1.5 |
4.0±0.15 |
3.0±0.2 |
1.5±0.1 |
|
|
DK4×4×1.5 |
4.0±0.15 |
4.0±0.2 |
1.5±0.1 |
|
|
DK4×5×1.5 |
4.0±0.15 |
5.0±0.3 |
1.5±0.1 |
|
|
DK4×6×1.5 |
4.0±0.15 |
6.0±0.3 |
1.5±0.1 |
|
|
DK4×10×1.5 |
4.0±0.15 |
10.0±0.4 |
1.5±0.1 |
|
|
DK4×1×2 |
4.0±0.15 |
1.0±0.15 |
2.0±0.15 |
|
|
DK4×1.5×2 |
4.0±0.15 |
1.5±0.15 |
2.0±0.15 |
|
|
DK4×2×2 |
4.0±0.15 |
2.0±0.15 |
2.0±0.15 |
|
|
DK4×10×2 |
4.0±0.15 |
10.0±0.4 |
2.0±0.15 |
|
|
DK4×1.3×2.2 |
4.0±0.15 |
1.3±0.15 |
2.2±0.15 |
|
|
DK5×4×1 |
5.0±0.15 |
4.0±0.2 |
1.0±0.1 |
|
|
DK5×8×1 |
5.0±0.15 |
8.0±0.3 |
1.0±0.1 |
|
|
FDKC5×5×1 |
5.0±0.15 |
5.0±0.3 |
1.0±0.1 |
|
|
DK5×8×1.5 |
5.0±0.15 |
8.0±0.3 |
1.5±0.1 |
|
|
DK5×2×2 |
5.0±0.15 |
2.0±0.15 |
2.0±0.15 |
|
|
DK5×3×2 |
5.0±0.15 |
3.0±0.2 |
2.0±0.15 |
|
|
DK5×4×2 |
5.0±0.15 |
4.0±0.2 |
2.0±0.15 |
|
|
DK5×5×2 |
5.0±0.15 |
5.0±0.3 |
2.0±0.15 |
|
|
DK5×1.3×2.3 |
5.0±0.15 |
1.3±0.15 |
2.3±0.15 |
|
|
DK5×5×2.3 |
5.0±0.15 |
5.0±0.3 |
2.3±0.15 |
|
|
DK5×7×2.3 |
5.0±0.15 |
7.0±0.3 |
2.3±0.15 |
|
|
DK5×9×2.3 |
5.0±0.15 |
9.0±0.3 |
2.3±0.15 |
|
|
DK5×1.5×2.5 |
5.0±0.15 |
1.5±0.15 |
2.5±0.15 |
|
|
DK5×2×2.5 |
5.0±0.15 |
2.0±0.15 |
2.5±0.15 |
|
|
DK5×5×2.5 |
5.0±0.15 |
5.0±0.3 |
2.5±0.15 |
|
|
DK5×6×2.5 |
5.0±0.15 |
6.0±0.3 |
2.5±0.15 |
|
|
DK5×1.5×3 |
5.0±0.15 |
1.5±0.15 |
3.0±0.2 |
|
|
DK5×2×3 |
5.0±0.15 |
2.0±0.15 |
3.0±0.2 |
|
|
DK5×3×3 |
5.0±0.15 |
3.0±0.2 |
3.0±0.2 |
|
|
DK5×4×3 |
5.0±0.15 |
4.0±0.2 |
3.0±0.2 |
|
|
DK5×6×3 |
5.0±0.15 |
6.0±0.3 |
3.0±0.2 |
|
|
DK6×1.5×3 |
6.0±0.2 |
1.5±0.15 |
3.0±0.2 |
|
|
DK6×3×3 |
6.0±0.2 |
3.0±0.2 |
3.0±0.2 |
|
|
DK6×3.8×3 |
6.0±0.2 |
3.8±0.2 |
3.0±0.2 |
|
|
DK6×5×3 |
6.0±0.2 |
5.0±0.3 |
3.0±0.2 |
|
|
DK6×8×3 |
6.0±0.2 |
8.0±0.3 |
3.0±0.2 |
|
|
DK6×10×3 |
6.0±0.2 |
10.0±0.4 |
3.0±0.2 |
|
|
DK6×8×4 |
6.0±0.2 |
8.0±0.3 |
4.0±0.2 |
|
|
DK6×10×4 |
6.0±0.2 |
10.0±0.4 |
4.0±0.2 |
|
|
DK7×2×4 |
7.0±0.25 |
2.0±0.15 |
4.0±0.2 |
|
|
DK7×3×4 |
7.0±0.25 |
3.0±0.2 |
4.0±0.2 |
|
|
DK7×4×4 |
7.0±0.25 |
4.0±0.2 |
4.0±0.2 |
|
|
DK7×5×5 |
7.0±0.25 |
5.0±0.3 |
5.0±0.2 |
|
|
DK7×9×5 |
7.0±0.25 |
9.0±0.3 |
5.0±0.2 |
|
|
DK8×2×4 |
8.0±0.25 |
2.0±0.15 |
4.0±0.2 |
|
|
DK8×20×4 |
8.0±0.25 |
20.0±0.5 |
4.0±0.2 |
|
|
DK8×6×5.5 |
8.0±0.25 |
6.0±0.3 |
5.5±0.25 |
|
|
DK8×12×5.5 |
8.0±0.25 |
12.0±0.4 |
5.5±0.25 |
|
|
DK8×16×5.5 |
8.0±0.25 |
16.0±0.5 |
5.5±0.25 |
|
|
DK8.7×9×6.3 |
8.7±0.25 |
9.0±0.3 |
6.3±0.25 |
|
|
DK8.7×15.7×6.3 |
8.7±0.25 |
15.7±0.5 |
6.3±0.25 |
|
|
DK9×5×4.5 |
9.0±0.25 |
5.0±0.3 |
4.5±0.2 |
|
|
DK9×10×4.5 |
9.0±0.25 |
10.0±0.4 |
4.5±0.2 |
|
|
DK9.5×10×5 |
9.5±0.3 |
10.0±0.4 |
5.0±0.2 |
|
|
DK9.5×14.5×5 |
9.5±0.3 |
14.5±0.4 |
5.0±0.2 |
|
|
DK10×2.5×5 |
10.0±0.3 |
2.5±0.2 |
5.0±0.2 |
|
|
DK10×3×6 |
10.0±0.3 |
3.0±0.2 |
6.0±0.25 |
|
|
DK10×10×6.35 |
10.0±0.3 |
10.0±0.4 |
6.35±0.25 |
|
|
DK10×15.7×6.35 |
10.0±0.3 |
15.7±0.5 |
6.35±0.25 |
|
|
DK10×16×7 |
10.0±0.3 |
16.0±0.5 |
7.0+0.4 |
|
|
DK12×20×5.6 |
12.0±0.4 |
20.0±0.8 |
5.6±0.25 |
|
|
DK12×15×7.3 |
12.0±0.4 |
15.0±0.5 |
7.3±0.25 |
|
|
DK12×15×8.5 |
12.0±0.4 |
15.0±0.5 |
8.5+0.3 |
|
|
DK14.2×20×7.2 |
14.2±0.5 |
20.0±0.5 |
7.2±0.25 |
|
|
DK14.3×28.6×6.35 |
14.3±0.5 |
28.6±0.7 |
6.35±0.25 |
|
|
DK16×28×7 |
16.0±0.4 |
28.0±0.7 |
7.0+0.3 |
|
|
DK16×20×8 |
16.0±0.4 |
20.0±0.5 |
8.0±0.25 |
|
|
DK16×12×9 |
16.0±0.4 |
12.0±0.4 |
9.0±0.25 |
|
|
DK16×17×9 |
16.0±0.4 |
17.0±0.6 |
9.0±0.25 |
|
|
DK16×28×9 |
16.0±0.4 |
28.0±0.7 |
9.0±0.25 |
|
|
DK16×16×10 |
16.0±0.4 |
16.0±0.5 |
10±0.3 |
|
|
DK16×16×12 |
16.0±0.4 |
16.0±0.5 |
12±0.3 |
|
|
DK17.5×20×9.5 |
17.5±0.4 |
20.0±0.5 |
9.5±0.25 |
|
|
DK17.5×28.5×9.5 |
17.5±0.4 |
28.5±0.7 |
9.5±0.25 |
|
|
DK17.5×28.5×10.7 |
17.5±0.4 |
28.5±0.7 |
10.7±0.3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
各种型号的产品均可按用户的要求和样品选用不同的材料、尺寸进行匹配制作。 |
